Package org.controlsfx.control

Class SegmentedBar<T extends SegmentedBar.Segment>

  • Type Parameters:
    T - the segment type
    All Implemented Interfaces:
    javafx.css.Styleable, javafx.event.EventTarget, javafx.scene.control.Skinnable
    public class SegmentedBar<T extends SegmentedBar.Segment>
extends javafx.scene.control.Control
    A control that makes it easy to create a horizontal bar that visualizes the segmentation of a total value. It consists of several segments, each segment representing a value. The sum of all values is the total value of the bar (see totalProperty()). The bar can be customized by setting a factory for the creation of the segment views. Another factory can be set for for the creation of info nodes shown by a PopOver.

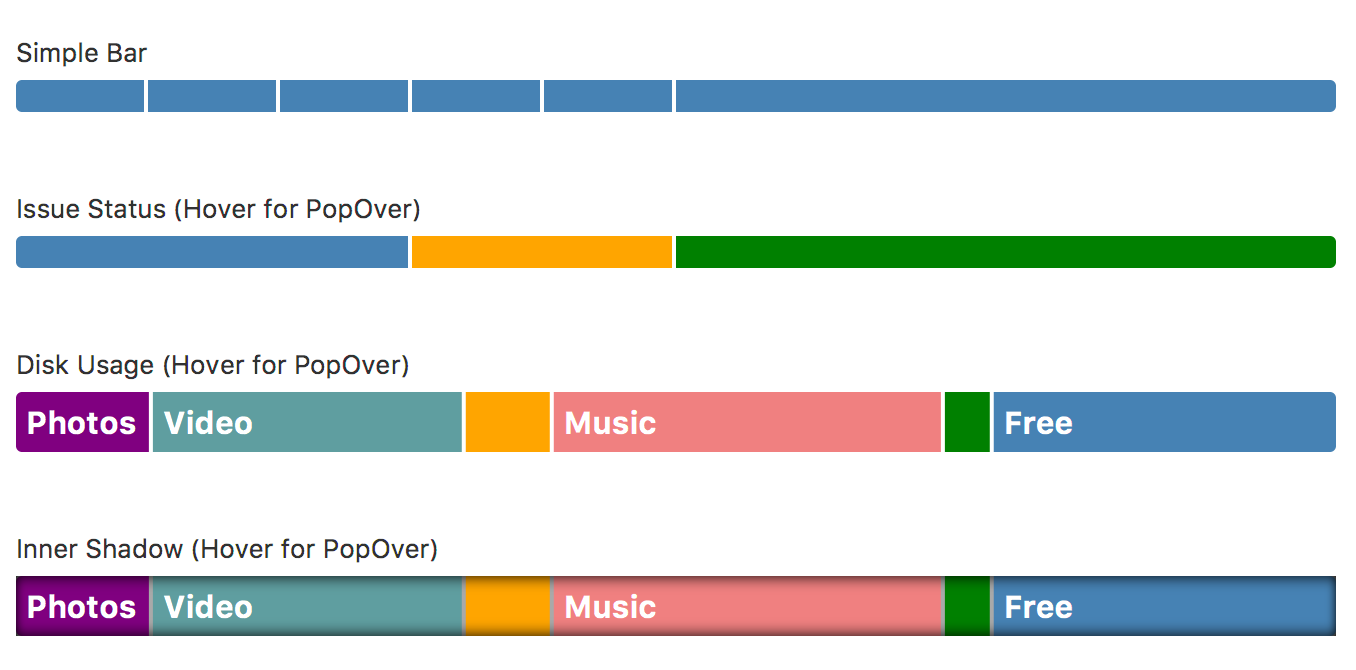

    Segmented Bar

    Example 1:

    The most basic version of the bar. It is using the default segment view factory.
     SegmentedBar bar = new SegmentedBar();
 bar.getSegments().addAll(
     new Segment(10, "10"),
     new Segment(10, "10"),
     new Segment(10, "10"),
     new Segment(10, "10"),
     new Segment(10, "10"),
     new Segment(50, "50"));

    Example 1:

    In this example the bar is used to visualize the usage of disk space for various media types (photos, videos, music, ...). A special info node factory is supplied to present a useful detailed description of the segment. The type "TypeSegment" is a subclass of SegmentedBar.Segment
     typesBar.setSegmentViewFactory(segment -> new TypeSegmentView(segment));
 typesBar.setInfoNodeFactory(segment -> new InfoLabel(segment.getText() + " " + segment.getValue() + " GB"));
 typesBar.getSegments().addAll(
     new TypeSegment(14, MediaType.PHOTOS),
     new TypeSegment(32, MediaType.VIDEO),
     new TypeSegment(9, MediaType.APPS),
     new TypeSegment(40, MediaType.MUSIC),
     new TypeSegment(5, MediaType.OTHER),
     new TypeSegment(35, MediaType.FREE));
    See Also:
    setSegmentViewFactory(Callback), setInfoNodeFactory(Callback)

    • Property Summary

      Properties
      Type Property Description
      javafx.beans.property.ObjectProperty<javafx.util.Callback<T,​javafx.scene.Node>> infoNodeFactory
      Stores a factory callback for creating nodes that will be shown by a popover when the mouse enters a segment.
      javafx.beans.property.ObjectProperty<javafx.geometry.Orientation> orientation
      Returns the styleable object property used for storing the orientation of the segmented bar.
      javafx.beans.property.ListProperty<T> segments
      A property used to store the list of segments shown by the bar.
      javafx.beans.property.ObjectProperty<javafx.util.Callback<T,​javafx.scene.Node>> segmentViewFactory
      Stores the segment view factory that is used to create one view for each segment added to the control.
      javafx.beans.property.ReadOnlyDoubleProperty total
      A read-only property that stores the sum of all segment values attached to the bar.

      • Properties inherited from class javafx.scene.control.Control

        contextMenu, skin, tooltip

      • Properties inherited from class javafx.scene.layout.Region

        background, border, cacheShape, centerShape, height, insets, maxHeight, maxWidth, minHeight, minWidth, opaqueInsets, padding, prefHeight, prefWidth, scaleShape, shape, snapToPixel, width

      • Properties inherited from class javafx.scene.Parent

        needsLayout

      • Properties inherited from class javafx.scene.Node

        accessibleHelp, accessibleRoleDescription, accessibleRole, accessibleText, blendMode, boundsInLocal, boundsInParent, cacheHint, cache, clip, cursor, depthTest, disabled, disable, effectiveNodeOrientation, effect, eventDispatcher, focused, focusTraversable, hover, id, inputMethodRequests, layoutBounds, layoutX, layoutY, localToParentTransform, localToSceneTransform, managed, mouseTransparent, nodeOrientation, onContextMenuRequested, onDragDetected, onDragDone, onDragDropped, onDragEntered, onDragExited, onDragOver, onInputMethodTextChanged, onKeyPressed, onKeyReleased, onKeyTyped, onMouseClicked, onMouseDragEntered, onMouseDragExited, onMouseDragged, onMouseDragOver, onMouseDragReleased, onMouseEntered, onMouseExited, onMouseMoved, onMousePressed, onMouseReleased, onRotate, onRotationFinished, onRotationStarted, onScrollFinished, onScroll, onScrollStarted, onSwipeDown, onSwipeLeft, onSwipeRight, onSwipeUp, onTouchMoved, onTouchPressed, onTouchReleased, onTouchStationary, onZoomFinished, onZoom, onZoomStarted, opacity, parent, pickOnBounds, pressed, rotate, rotationAxis, scaleX, scaleY, scaleZ, scene, style, translateX, translateY, translateZ, viewOrder, visible

    • Field Summary

      • Fields inherited from class javafx.scene.layout.Region

        USE_COMPUTED_SIZE, USE_PREF_SIZE

      • Fields inherited from class javafx.scene.Node

        BASELINE_OFFSET_SAME_AS_HEIGHT

    • Constructor Summary

      Constructors
      Constructor Description
      SegmentedBar()
      Constructs a new segmented bar.

    • Method Summary

      All Methods Static Methods Instance Methods Concrete Methods
      Modifier and Type Method Description
      protected javafx.scene.control.Skin<?> createDefaultSkin()
      static java.util.List<javafx.css.CssMetaData<? extends javafx.css.Styleable,​?>> getClassCssMetaData()
      java.util.List<javafx.css.CssMetaData<? extends javafx.css.Styleable,​?>> getControlCssMetaData()
      javafx.util.Callback<T,​javafx.scene.Node> getInfoNodeFactory()
      Returns the value of infoNodeFactoryProperty().
      javafx.geometry.Orientation getOrientation()
      Returns the value of the orientation property.
      javafx.collections.ObservableList<T> getSegments()
      Returns the list of segments (the model).
      javafx.util.Callback<T,​javafx.scene.Node> getSegmentViewFactory()
      Returns the value of segmentViewFactoryProperty().
      double getTotal()
      Returns the value of totalProperty().
      java.lang.String getUserAgentStylesheet()
      protected java.lang.String getUserAgentStylesheet​(java.lang.Class<?> clazz, java.lang.String fileName)
      A helper method that ensures that the resource based lookup of the user agent stylesheet only happens once.
      javafx.beans.property.ObjectProperty<javafx.util.Callback<T,​javafx.scene.Node>> infoNodeFactoryProperty()
      Stores a factory callback for creating nodes that will be shown by a popover when the mouse enters a segment.
      javafx.beans.property.ObjectProperty<javafx.geometry.Orientation> orientationProperty()
      Returns the styleable object property used for storing the orientation of the segmented bar.
      javafx.beans.property.ListProperty<T> segmentsProperty()
      A property used to store the list of segments shown by the bar.
      javafx.beans.property.ObjectProperty<javafx.util.Callback<T,​javafx.scene.Node>> segmentViewFactoryProperty()
      Stores the segment view factory that is used to create one view for each segment added to the control.
      void setInfoNodeFactory​(javafx.util.Callback<T,​javafx.scene.Node> factory)
      Sets the value of infoNodeFactoryProperty().
      void setOrientation​(javafx.geometry.Orientation value)
      Sets the value of the orientation property.
      void setSegments​(javafx.collections.ObservableList<T> segments)
      Sets the list of segments (the model).
      void setSegmentViewFactory​(javafx.util.Callback<T,​javafx.scene.Node> factory)
      Sets the value of segmentViewFactoryProperty().
      javafx.beans.property.ReadOnlyDoubleProperty totalProperty()
      A read-only property that stores the sum of all segment values attached to the bar.

      • Methods inherited from class javafx.scene.control.Control

        computeMaxHeight, computeMaxWidth, computeMinHeight, computeMinWidth, computePrefHeight, computePrefWidth, contextMenuProperty, executeAccessibleAction, getBaselineOffset, getContextMenu, getCssMetaData, getInitialFocusTraversable, getSkin, getTooltip, isResizable, layoutChildren, queryAccessibleAttribute, setContextMenu, setSkin, setTooltip, skinProperty, tooltipProperty

      • Methods inherited from class javafx.scene.layout.Region

        backgroundProperty, borderProperty, cacheShapeProperty, centerShapeProperty, getBackground, getBorder, getHeight, getInsets, getMaxHeight, getMaxWidth, getMinHeight, getMinWidth, getOpaqueInsets, getPadding, getPrefHeight, getPrefWidth, getShape, getWidth, heightProperty, insetsProperty, isCacheShape, isCenterShape, isScaleShape, isSnapToPixel, layoutInArea, layoutInArea, layoutInArea, layoutInArea, maxHeight, maxHeightProperty, maxWidth, maxWidthProperty, minHeight, minHeightProperty, minWidth, minWidthProperty, opaqueInsetsProperty, paddingProperty, positionInArea, positionInArea, prefHeight, prefHeightProperty, prefWidth, prefWidthProperty, resize, scaleShapeProperty, setBackground, setBorder, setCacheShape, setCenterShape, setHeight, setMaxHeight, setMaxSize, setMaxWidth, setMinHeight, setMinSize, setMinWidth, setOpaqueInsets, setPadding, setPrefHeight, setPrefSize, setPrefWidth, setScaleShape, setShape, setSnapToPixel, setWidth, shapeProperty, snappedBottomInset, snappedLeftInset, snappedRightInset, snappedTopInset, snapPosition, snapPositionX, snapPositionY, snapSize, snapSizeX, snapSizeY, snapSpace, snapSpaceX, snapSpaceY, snapToPixelProperty, widthProperty

      • Methods inherited from class javafx.scene.Parent

        getChildren, getChildrenUnmodifiable, getManagedChildren, getStylesheets, isNeedsLayout, layout, lookup, needsLayoutProperty, requestLayout, requestParentLayout, setNeedsLayout, updateBounds

      • Methods inherited from class javafx.scene.Node

        accessibleHelpProperty, accessibleRoleDescriptionProperty, accessibleRoleProperty, accessibleTextProperty, addEventFilter, addEventHandler, applyCss, autosize, blendModeProperty, boundsInLocalProperty, boundsInParentProperty, buildEventDispatchChain, cacheHintProperty, cacheProperty, clipProperty, computeAreaInScreen, contains, contains, cursorProperty, depthTestProperty, disabledProperty, disableProperty, effectiveNodeOrientationProperty, effectProperty, eventDispatcherProperty, fireEvent, focusedProperty, focusTraversableProperty, getAccessibleHelp, getAccessibleRole, getAccessibleRoleDescription, getAccessibleText, getBlendMode, getBoundsInLocal, getBoundsInParent, getCacheHint, getClip, getContentBias, getCursor, getDepthTest, getEffect, getEffectiveNodeOrientation, getEventDispatcher, getId, getInitialCursor, getInputMethodRequests, getLayoutBounds, getLayoutX, getLayoutY, getLocalToParentTransform, getLocalToSceneTransform, getNodeOrientation, getOnContextMenuRequested, getOnDragDetected, getOnDragDone, getOnDragDropped, getOnDragEntered, getOnDragExited, getOnDragOver, getOnInputMethodTextChanged, getOnKeyPressed, getOnKeyReleased, getOnKeyTyped, getOnMouseClicked, getOnMouseDragEntered, getOnMouseDragExited, getOnMouseDragged, getOnMouseDragOver, getOnMouseDragReleased, getOnMouseEntered, getOnMouseExited, getOnMouseMoved, getOnMousePressed, getOnMouseReleased, getOnRotate, getOnRotationFinished, getOnRotationStarted, getOnScroll, getOnScrollFinished, getOnScrollStarted, getOnSwipeDown, getOnSwipeLeft, getOnSwipeRight, getOnSwipeUp, getOnTouchMoved, getOnTouchPressed, getOnTouchReleased, getOnTouchStationary, getOnZoom, getOnZoomFinished, getOnZoomStarted, getOpacity, getParent, getProperties, getPseudoClassStates, getRotate, getRotationAxis, getScaleX, getScaleY, getScaleZ, getScene, getStyle, getStyleableParent, getStyleClass, getTransforms, getTranslateX, getTranslateY, getTranslateZ, getTypeSelector, getUserData, getViewOrder, hasProperties, hoverProperty, idProperty, inputMethodRequestsProperty, intersects, intersects, isCache, isDisable, isDisabled, isFocused, isFocusTraversable, isHover, isManaged, isMouseTransparent, isPickOnBounds, isPressed, isVisible, layoutBoundsProperty, layoutXProperty, layoutYProperty, localToParent, localToParent, localToParent, localToParent, localToParent, localToParentTransformProperty, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToScene, localToSceneTransformProperty, localToScreen, localToScreen, localToScreen, localToScreen, localToScreen, lookupAll, managedProperty, mouseTransparentProperty, nodeOrientationProperty, notifyAccessibleAttributeChanged, onContextMenuRequestedProperty, onDragDetectedProperty, onDragDoneProperty, onDragDroppedProperty, onDragEnteredProperty, onDragExitedProperty, onDragOverProperty, onInputMethodTextChangedProperty, onKeyPressedProperty, onKeyReleasedProperty, onKeyTypedProperty, onMouseClickedProperty, onMouseDragEnteredProperty, onMouseDragExitedProperty, onMouseDraggedProperty, onMouseDragOverProperty, onMouseDragReleasedProperty, onMouseEnteredProperty, onMouseExitedProperty, onMouseMovedProperty, onMousePressedProperty, onMouseReleasedProperty, onRotateProperty, onRotationFinishedProperty, onRotationStartedProperty, onScrollFinishedProperty, onScrollProperty, onScrollStartedProperty, onSwipeDownProperty, onSwipeLeftProperty, onSwipeRightProperty, onSwipeUpProperty, onTouchMovedProperty, onTouchPressedProperty, onTouchReleasedProperty, onTouchStationaryProperty, onZoomFinishedProperty, onZoomProperty, onZoomStartedProperty, opacityProperty, parentProperty, parentToLocal, parentToLocal, parentToLocal, parentToLocal, parentToLocal, pickOnBoundsProperty, pressedProperty, pseudoClassStateChanged, relocate, removeEventFilter, removeEventHandler, requestFocus, resizeRelocate, rotateProperty, rotationAxisProperty, scaleXProperty, scaleYProperty, scaleZProperty, sceneProperty, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, sceneToLocal, screenToLocal, screenToLocal, screenToLocal, setAccessibleHelp, setAccessibleRole, setAccessibleRoleDescription, setAccessibleText, setBlendMode, setCache, setCacheHint, setClip, setCursor, setDepthTest, setDisable, setDisabled, setEffect, setEventDispatcher, setEventHandler, setFocused, setFocusTraversable, setHover, setId, setInputMethodRequests, setLayoutX, setLayoutY, setManaged, setMouseTransparent, setNodeOrientation, setOnContextMenuRequested, setOnDragDetected, setOnDragDone, setOnDragDropped, setOnDragEntered, setOnDragExited, setOnDragOver, setOnInputMethodTextChanged, setOnKeyPressed, setOnKeyReleased, setOnKeyTyped, setOnMouseClicked, setOnMouseDragEntered, setOnMouseDragExited, setOnMouseDragged, setOnMouseDragOver, setOnMouseDragReleased, setOnMouseEntered, setOnMouseExited, setOnMouseMoved, setOnMousePressed, setOnMouseReleased, setOnRotate, setOnRotationFinished, setOnRotationStarted, setOnScroll, setOnScrollFinished, setOnScrollStarted, setOnSwipeDown, setOnSwipeLeft, setOnSwipeRight, setOnSwipeUp, setOnTouchMoved, setOnTouchPressed, setOnTouchReleased, setOnTouchStationary, setOnZoom, setOnZoomFinished, setOnZoomStarted, setOpacity, setPickOnBounds, setPressed, setRotate, setRotationAxis, setScaleX, setScaleY, setScaleZ, setStyle, setTranslateX, setTranslateY, setTranslateZ, setUserData, setViewOrder, setVisible, snapshot, snapshot, startDragAndDrop, startFullDrag, styleProperty, toBack, toFront, toString, translateXProperty, translateYProperty, translateZProperty, usesMirroring, viewOrderProperty, visibleProperty

      • Methods inherited from class java.lang.Object

        clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

      • Methods inherited from interface javafx.css.Styleable

        getStyleableNode

    • Property Detail

      • infoNodeFactory

        public final javafx.beans.property.ObjectProperty<javafx.util.Callback<T extends SegmentedBar.Segment,​javafx.scene.Node>> infoNodeFactoryProperty
        Stores a factory callback for creating nodes that will be shown by a popover when the mouse enters a segment. The popover / node can provide detailed information about a segment.
        See Also:
        getInfoNodeFactory(), setInfoNodeFactory(Callback)

      • orientation

        public final javafx.beans.property.ObjectProperty<javafx.geometry.Orientation> orientationProperty
        Returns the styleable object property used for storing the orientation of the segmented bar. The CSS property "-fx-orientation" can be used to initialize this value.
        See Also:
        getOrientation(), setOrientation(Orientation)

      • total

        public final javafx.beans.property.ReadOnlyDoubleProperty totalProperty
        A read-only property that stores the sum of all segment values attached to the bar.
        See Also:
        getTotal()

    • Constructor Detail

      • SegmentedBar

        public SegmentedBar()
        Constructs a new segmented bar.

    • Method Detail

      • createDefaultSkin

        protected javafx.scene.control.Skin<?> createDefaultSkin()
        Overrides:
        createDefaultSkin in class javafx.scene.control.Control

      • getUserAgentStylesheet

        public java.lang.String getUserAgentStylesheet()
        Overrides:
        getUserAgentStylesheet in class javafx.scene.layout.Region

      • infoNodeFactoryProperty

        public final javafx.beans.property.ObjectProperty<javafx.util.Callback<T,​javafx.scene.Node>> infoNodeFactoryProperty()
        Stores a factory callback for creating nodes that will be shown by a popover when the mouse enters a segment. The popover / node can provide detailed information about a segment.
        See Also:
        getInfoNodeFactory(), setInfoNodeFactory(Callback)

      • getInfoNodeFactory

        public final javafx.util.Callback<T,​javafx.scene.Node> getInfoNodeFactory()
        Returns the value of infoNodeFactoryProperty().
        Returns:
        the info node factory

      • setInfoNodeFactory

        public void setInfoNodeFactory​(javafx.util.Callback<T,​javafx.scene.Node> factory)
        Sets the value of infoNodeFactoryProperty().
        Parameters:
        factory - the info node factory

      • setOrientation

        public final void setOrientation​(javafx.geometry.Orientation value)
        Sets the value of the orientation property.
        Parameters:
        value - the new orientation (horizontal, vertical).
        See Also:
        orientationProperty()

      • getOrientation

        public final javafx.geometry.Orientation getOrientation()
        Returns the value of the orientation property.
        Returns:
        the current orientation of the control
        See Also:
        orientationProperty()

      • orientationProperty

        public final javafx.beans.property.ObjectProperty<javafx.geometry.Orientation> orientationProperty()
        Returns the styleable object property used for storing the orientation of the segmented bar. The CSS property "-fx-orientation" can be used to initialize this value.
        See Also:
        getOrientation(), setOrientation(Orientation)

      • segmentViewFactoryProperty

        public final javafx.beans.property.ObjectProperty<javafx.util.Callback<T,​javafx.scene.Node>> segmentViewFactoryProperty()
        Stores the segment view factory that is used to create one view for each segment added to the control.
        See Also:
        getSegmentViewFactory(), setSegmentViewFactory(Callback)

      • getSegmentViewFactory

        public final javafx.util.Callback<T,​javafx.scene.Node> getSegmentViewFactory()
        Returns the value of segmentViewFactoryProperty().
        Returns:
        the segment view factory

      • setSegmentViewFactory

        public final void setSegmentViewFactory​(javafx.util.Callback<T,​javafx.scene.Node> factory)
        Sets the value of segmentViewFactoryProperty().
        Parameters:
        factory - the segment view factory

      • segmentsProperty

        public final javafx.beans.property.ListProperty<T> segmentsProperty()
        A property used to store the list of segments shown by the bar.
        See Also:
        getSegments(), setSegments(ObservableList)

      • getSegments

        public final javafx.collections.ObservableList<T> getSegments()
        Returns the list of segments (the model).
        Returns:
        the list of segments shown by the bar

      • setSegments

        public void setSegments​(javafx.collections.ObservableList<T> segments)
        Sets the list of segments (the model).
        Parameters:
        segments - the list of segments shown by the bar

      • totalProperty

        public final javafx.beans.property.ReadOnlyDoubleProperty totalProperty()
        A read-only property that stores the sum of all segment values attached to the bar.
        See Also:
        getTotal()

      • getTotal

        public final double getTotal()
        Returns the value of totalProperty().
        Returns:
        the total value of the bar (sum of segments)

      • getClassCssMetaData

        public static java.util.List<javafx.css.CssMetaData<? extends javafx.css.Styleable,​?>> getClassCssMetaData()
        Returns:
        The CssMetaData associated with this class, which may include the CssMetaData of its super classes.

      • getControlCssMetaData

        public java.util.List<javafx.css.CssMetaData<? extends javafx.css.Styleable,​?>> getControlCssMetaData()
        Overrides:
        getControlCssMetaData in class javafx.scene.control.Control

      • getUserAgentStylesheet

        protected final java.lang.String getUserAgentStylesheet​(java.lang.Class<?> clazz,
                                                        java.lang.String fileName)
        A helper method that ensures that the resource based lookup of the user agent stylesheet only happens once. Caches the external form of the resource.
        Parameters:
        clazz - the class used for the resource lookup
        fileName - the name of the user agent stylesheet
        Returns:
        the external form of the user agent stylesheet (the path)
